1. Project Overview

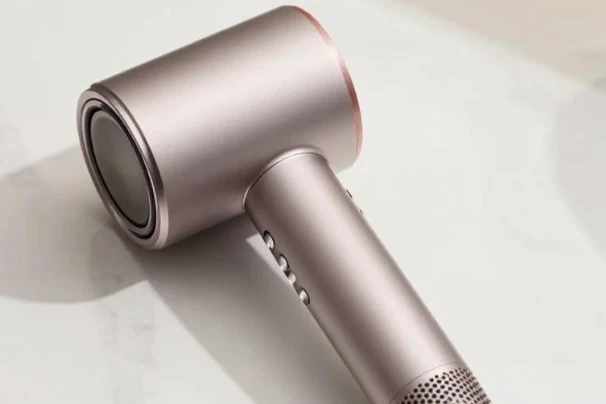

The project for the plastic shell of a high-speed hair dryer, a well-known domestic consumer electronics brand, encompasses multiple sets of precision plastic components such as the main body surface shell, handle shell, air duct internal bracket, and decorative panel. The product falls under the category of high-end household personal care appliances, with stringent requirements for appearance quality, surface assembly fit, high temperature resistance, drop strength, and batch appearance consistency. The client's original mold design suffered from issues such as visible weld lines on the surface, uneven assembly gaps in the shell, shrinkage in thick-walled positions, deformation of thin-walled air duct components, and significant color variation within the same batch. The high rate of assembly defects made it impossible to meet the appearance acceptance and reliability testing standards for the brand's new product launch. The client urgently needed a mold manufacturer with capabilities in consumer precision mold development, injection molding of curved surface appearance parts, and stable mass production quality control to complete a full set of mold redesign, process optimization, and stable batch delivery.

II. Technical difficulties and industry pain points of the project

Combining the characteristics of the appearance surface and air duct structure of high-speed hair dryers, the core difficulties are concentrated in four dimensions: appearance, assembly, heat resistance, and mass production stability

1. Requirements for precision assembly of curved surfaces: The entire machine requires multi-surface buckle assembly, with a shell fit tolerance of ±0.05mm. High precision is required for air duct positioning holes, buckles, and assembly seams. Dimensional deviations can directly lead to uneven gaps in the shell, loose buckles, and overall machine shaking.

2. High-end appearance quality standards: The product is directly presented to the end consumer, and the appearance of the curved surface requires a uniform matte finish, without shrinkage, dents, white spots, burrs, or obvious weld lines. The mold joint lines should be weakened to meet the appearance acceptance standards for high-end home appliances.

3. Heat resistance and structural reliability: The internal heating components of the product operate at high temperatures, necessitating a housing material that is resistant to high temperatures and thermal deformation. The long process of filling thin-walled parts in the air duct poses significant challenges, and the product must not crack or break its buckles during drop testing.

4. The difficulty in controlling molding deformation is significant: the shell features a large curved and irregular structure with uneven wall thickness distribution, leading to inconsistent cooling and shrinkage during injection molding. This makes the shell highly susceptible to warping and twisting, thereby affecting the overall fit of the machine.

5. Batch consistency and environmental compliance: Consumer electronics are shipped in large quantities, requiring consistency in color, appearance, and size within the same batch. The materials must comply with RoHS environmental standards and meet market access requirements both domestically and internationally.

III. Customized Molding Overall Solutions

Relying on the ISO9001 quality management system and years of experience in consumer electronics precision molding projects, we provide a one-stop closed-loop solution encompassing DFM structural review, mold flow simulation, precision mold manufacturing, injection molding, and appearance inspection.

1. In the early stage of the DFM (Design for Manufacturing) special optimization and mold flow simulation project, a special DFM review for consumer electronics was conducted focusing on large surfaces, thin-walled air ducts, and dense buckle structures. The review aimed to optimize wall thickness uniformity, stiffener layout, gate location, and venting scheme. Through mold flow simulation, risks such as insufficient filling, weld line locations, shrinkage, and warpage deformation were predicted. By adjusting the product structure and mold scheme in advance, the risk of defects was avoided before mold opening, ensuring the appearance of the surface and structural stability.

2. Customized development of high-end appearance-grade precision molds. The mold processing accuracy is controlled at ±0.01mm, and a balanced conformal cooling water circuit is designed to improve warping and deformation caused by uneven cooling of curved surfaces. The appearance cavity is treated with fine polishing to transfer weld marks to non-visible areas and weaken the mold joint line. Independent precision inserts are used at buckle, positioning hole, and air duct positions to ensure dimensional consistency in mass production.

3. Selection of high-temperature resistant materials and calibration of injection molding process: We select engineering plastics that are high-temperature resistant, high impact resistant, and comply with RoHS environmental standards, providing complete material certification. Considering the molding characteristics of curved long runners, we precisely calibrate the drying, injection speed, packing, and cooling cycles, adopting a segmented injection molding process to reduce internal stress in the product, improve shrinkage and warpage issues, and enhance the drop resistance strength of the buckle.

4. Establish a dedicated appearance quality control system for consumer electronics, establish special inspection standards for appearance parts, and implement incoming inspection, first article confirmation, process inspection, and full inspection of finished products. Use 2D imaging to inspect key assembly dimensions, and conduct manual full inspection of appearance parts to screen for color differences, scratches, and weld marks; fully retain production records and inspection reports to meet brand owners' sampling, auditing, and export compliance requirements.

IV. Project implementation results and customer value

The project achieved a successful trial molding, quickly completing sample verification and small-batch trial production, and smoothly transitioning to large-scale stable mass production. It completely solved pain points such as shell warping, surface shrinkage, large assembly gaps, appearance weld lines, and color difference fluctuations. The assembly yield of the entire machine was significantly improved, and the product successfully passed reliability tests such as drop testing and high-temperature aging, meeting the brand's high-end appearance acceptance standards. The product batch quality is stable, and the full set of documentation is complete, meeting domestic and international sales compliance requirements. This cooperation fully demonstrates our company's capabilities in precision mold development for household consumer electronics, injection molding of appearance parts, and quality control of large-scale appearance parts. We can undertake customization of various consumer plastic parts such as wireless charging, personal care appliances, smart home, and portable digital products, providing consumer electronics brands with a one-stop molding solution featuring high appearance value, high yield, and high stability.
